FAA Type LED Aviation Obstruction Light , L-810 Red Steady Burning Light

  • 1
  • 2
  • 3

Price : Negotiable

Delivery Time : 2-15 days

Brand Name : Annhung

Payment Terms : T/T, Western Union, MoneyGram, L/C

base type : LED

Packaging Details : Plastic bag with Paper Carton

Type : LED Aviation Obstruction Lights Low intensity

IP Rating : IP65

Standard : ICAO( Annex 14) FAA L-810

Working mode : Steady Burning (Fixed)

Supply Ability : 1000 pieces per month

Power(W) : 3

MOQ : 1 Piece

Material : Die casting aluminum

Certification : ICAO, CE, ISO9001

Place of Origin : Shenzhen, China

Model Number : AH-LI/B

Voltage : 110vac-240vac, 48vdc, 12vdc

Color : Red

Contact Now

FAA Type L-810 Red LED Steady-burning Low Intensity Obstruction Light

Compliances

FAA AC 150/5345-43 (current edition)
Engineering Brief 67D
ETL Certified
ICAO (Annex 14 - Fourth Edition, July 2004)

Product Application

This Low-intensity light is a steady burning aviation obstruction light,this fixture is used to mark any obstacle that may present hazards to aircraft navigation.

Product Descripton

SPECIFICATIONS AH-LI/B Low-intensity Single Aviation Obstruction Light
Light Characteristics
Light Source LED
Available Colors Red(Other color is optional)
Intensity(cd) 10cd (type A), 32.5cd(type B), others optional
Horizontal Output(degrees) 360
Vertical Divergence(degrees) ≥10
Flash Characteristics Steady-burning/Flashing(20fpm) adjustable
Operation Mode Dusk-to-dawn Automatically as standard.
24hours operation as option
LED Life Experience(hours) >100,000
Electrical Characteristics
Operating Voltage DC(12-48VDC) or AC(110-240VAC)
Power(W) 3
Circuit Protection Integrated
Physical Characteristics
Body Material Polycarbonate
Base Material Die-casting aluminum
Mounting 3/4 inch pipe thread as stadard. 1inch as option
Dimension(mm) 136×136×220
Weight(kg) 0.75
Product Life Expectancy 5 years Plus
Environmental Factors

Ambient Temperature(℃)

-55℃~+70℃

 -55~70
Humidity 10%-95%
Wind Speed 80m/s
Waterproof IP65
Compliance
ICAO Annex 14 Volume 1,'Aerodrome Design and
Operations’ Forth edition July 2004, table 6.3
Low-intensity Type A/B Obstacle Light
FAA L-810 Steady-burning Red Aviation Obstruction Light
Options Available
Flashing rate
Powder-coated color
NVG(Night Vision Goggles) compatitble LED
GSM Monitoring
Dry contact alarm(NO COM NC)

Features

  • Patented technology.
  • Cast Aluminum housing.
  • Available as a single or dual unit.
  • Available in 12 VDC, 24 VDC, 48 VDC, 120 VAC & 220 VAC(50 or 60 Hz).
  • Earth grounding provisions provided.
  • Unique optically designed lens to enhance LED operation and provide 360° visibility.
  • State-of-the-art high-flux LED technology.
  • Weather/corrosion resistant lamp assembly and housing.
  • Self-contained wiring compartment eliminates additional boxes.
  • Threaded 1” and ¾” bottom hub for mounting.
  • Can be operated steady or flashed (controller not supplied).
  • Resistant to shock and vibration.
  • IP65 / IP66.

Optional

  • Alarm contact(NO COM NC)for remote monitoring
  • Infrared LED for pilot using NVG
  • GSM cellphone monitoring
  • RS485 communication part for monitoring

Dimension Drawing

FAA Type LED Aviation Obstruction Light , L-810 Red Steady Burning Light

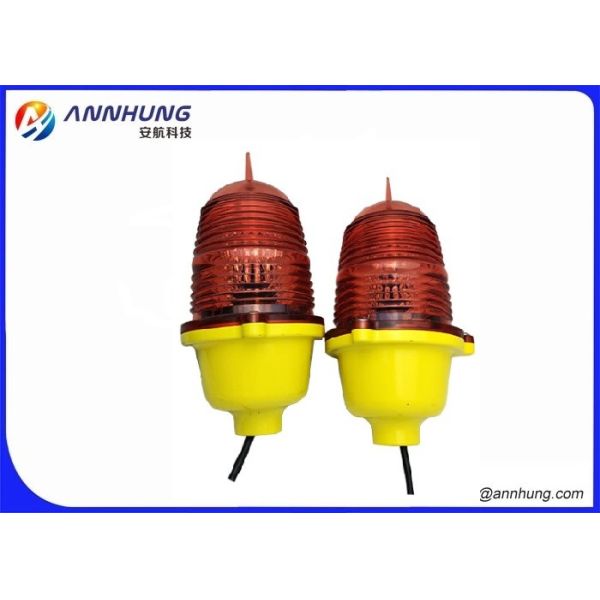

Product Picture

FAA Type LED Aviation Obstruction Light , L-810 Red Steady Burning Light

FAA Type LED Aviation Obstruction Light , L-810 Red Steady Burning Light

Packaging & Delivery

Packaging: Paper carton 1-9 piece/box.

Delivery: In 2-10 days after payment.

After-sales service

1. 2 years full warranty, 5 years maintenance since the purchasing date.

2. Since the purchasing date, full warranty from 1st year to 2nd year, free maintenance cost and material cost.

3. Since the purchasing date, maintenance from 3rd year to 5th year, free maintenance charge.
