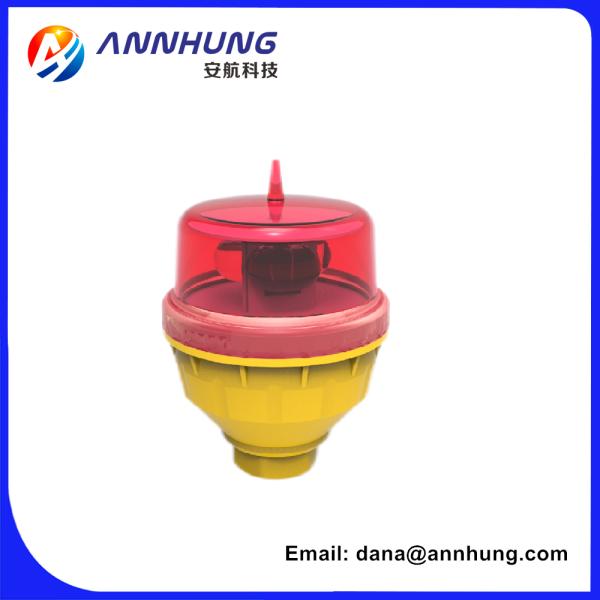

32.5cd Light Intensity IP66 Waterproof LED Aviation Obstruction Light with 100,000 Hours LED Life

  • 1
  • 2
  • 3

Payment Terms : T/T,Western Union

Model Number : AH-LI-B2

MOQ : 1

Type : Aviation Obstruction Lights

IP Rating : IP66

Packaging Details : Packaging Details:136 by 136 by 220 paper carton 1 piece/box

Working mode : Steady Burning or Flashing

Certification : ICAO, FAA L-810

Lamp Luminous Flux(lm) : 100%

Supply Ability : 1000 Piece/Pieces per Month AH-LI/B Low-Intensity Single Aviation Obstruction Light Steady B

Place of Origin : Made in Shenzhen

Lamp Power(W) : 2.5

Input Voltage(V) : AC220V (option voltage,eg.AC120V,AC110V,DC48V)

Emitting Color : Red

Light Source : LED

Brand Name : ANNHUNG

Light Intensity : ≥ 32.5cd

Contact Now

LED Building Aircraft Aviation Obstruction Light Chimney Warning Light

Single Aviation Obstruction Light compliant with ICAO, FAA, and CAAC standards.

Download Datasheet: AH-LI-B Low-intensity L810 Single Aviation Obstruction Light
Applications

This series of products can be used alone on the top of high-rise buildings, chimneys, marking towers (telecom, GSM, microwave & TV), high poles, tower cranes, wind turbines, etc., with heights lower than 45m. When obstacle height exceeds 45m, these products can be used with medium-intensity or high-intensity obstruction lights to mark potentially hazardous obstructions to air traffic with steady or flashing red safety lights.

Technical Specifications
Mode AH-LI-B2
Light intensity ≥ 32.5cd
Flash rate Steady-burning mode or Flashing mode (20-60 times/minute)
Light source LED
Service life of LED ≥ 100,000 hours
Operating voltage AC220V (optional voltages: AC120V, AC110V, DC48V)
Power consumption 2.5W
Overall size (mm) Φ90×13
Installation size 3/4 inch
Vertical degree ≥ 10°
Horizontal degree 360°
Housing material Polycarbonate
Base material Die casting aluminum
Weight 0.3Kg
Emitting color Aviation red
Ambient temperature -40℃ to +75℃
Wind load 130m/s
Protection standard IP66
Product Advantages
  • PC material with excellent impact protection strength, thermal stability, and high transmittance
  • Bird spike protection against bird droppings
  • International-advanced cold LED technology with low power consumption, high brightness, and 100,000-hour service life
  • LED-based obstruction lights last 15 times longer than traditional incandescent light sources
  • Approximately 96% less power consumption than 116W incandescent lights
  • Major maintenance cost savings with built-in surge protection device
  • Strong corrosion resistance, shock and vibration protection, and UV protection
  • Dawn to dusk operation: Built-in photocell automatically activates lights at night and turns off during the day
  • 3/4 inch or 1 inch installation size with compact design suitable for telecom and flag-pole installations
  • Switch for converting between flashing mode and steady-burning operation
32.5cd Light Intensity IP66 Waterproof LED Aviation Obstruction Light with 100,000 Hours LED Life
Company Information

Shenzhen Anhang Technology Company Limited is a high-technology enterprise specializing in research, production, sales, and after-sales services for a wide range of aviation obstruction lights, aircraft warning lights, helipad lights, LED marine lanterns, LED bulbs, and aircraft warning spheres. We are a domestic market leader in navigation lights and a supporter of green and safe emissions. Our products are widely used in civil airports, helipads, communication towers, factories, power plant chimneys, television towers, ports, bridges, high-rise buildings, and buoyage systems at sea.
