AH-MS-A1 Solar Aviation Obstruction Light , LED Warning Lights Type A L865

Name: AHMSA1 Solar Aviation Obstruction Light LED Warning Lights Type A L865
Brand: ANNHUNG
Price: 1 USD

Operating Voltage(Vdc) : 12

Lamb Body Material : UV protected Polycarbonate

Weight(kg) : 15

Brand Name : ANNHUNG

Supply Ability : 1000pieces for one month

Packaging Details : 1 piece/box

Nominal Voltage (V) : 12V

Flash Characteristics : Flashing 20-60FPM

Operation Mode : 24hours operation

Name : AH-MS-A1 Solar Aviation Obstruction Light , LED Warning Lights Type A L865

LED Life Experience(hours) : >100,000

Horizontal Output(degrees) : 360

Intensity(cd) : 20000cd±25%(Daytime), 2000cd±25%(Night)

Place of Origin : Guangdong, China

MOQ : 1

Model Number : AH-MS-A1

Light Source : LED

Battery type : Valve-Regulated Lead Acid Battery(VRLA)

Autonomy (hours) : 150

Certification : FCC, ICAO, FAA, CE

Vertical Divergence(degrees) : ≥3

Solar Module Type : Mono crystalline Silicon

Base Material : Valve-Regulated Lead Acid Battery(VRLA

Payment Terms : L/C, T/T, Western Union, MoneyGram

Output(watts) : 20W

Price : 1-589usd/pc

Emitting Color : White

Waterproof : IP65

Contact Now

AH-MS-A1 Solar Aviation Obstruction Light , LED Warning Lights Type A L865

Aviation light

Solar Aviation Light

Aviation Obstruction light

Applications

This Medium-intensity Type A Aviation Obstruction Light flashing white color, designed for marking top of obstacle which height is between 105 to 150 meters.

Side open Stainless steel 304 material of battery box can be open for maintenance convenience very easily.

Product Description

SPECIFICATIONS	AH-MS/A Medium-intensity Type A L865 Solar Aviation Obstruction Light
Light Characteristics
Light Source	Ultra high intensity CREE LED
Emitting Color	White
Intensity(cd)	20000cd±25%(Daytime), 2000cd±25%(Night)
Horizontal Output(degrees)	360
Vertical Divergence(degrees)	≥3
Flash Characteristics	Flashing 20-60FPM
Operation Mode	24hours operation
LED Life Experience(hours)	>100,000
Electrical Characteristics
Operating Voltage(Vdc)	12
Circuit Protection	Integrated
Solar Characteristics
Solar Module Type	Mono crystalline Silicon
Output(watts)	20W
Charging Regulation	Microprocessor controlled
Battery Characteristics
Battery type	Valve-Regulated Lead Acid Battery(VRLA)
Nominal Voltage (V)	12
Battery Service Life	Average 3 years
Autonomy (hours)	150
Physical Characteristics
Lamb Body Material	UV protected Polycarbonate
Base Material	Valve-Regulated Lead Acid Battery(VRLA)
Installation Size	292×200×M10
Overall Size (mm)	515×500×360 550
Weight(kg)	15
Product Life Expectancy	Average 3 years
Environmental Factors
Ambient Temperature(℃) -55℃~+70℃	-45~80
Humidity	0~95%
Wind Speed	80m/s
Waterproof	IP65
Compliance
ICAO	Annex 14 Volume 1,'Aerodrome Design and
	Operations’ Sixth edition July 2013, table 6.3
	Medium-intensity Type A Obstacle Light
FAA	L-865

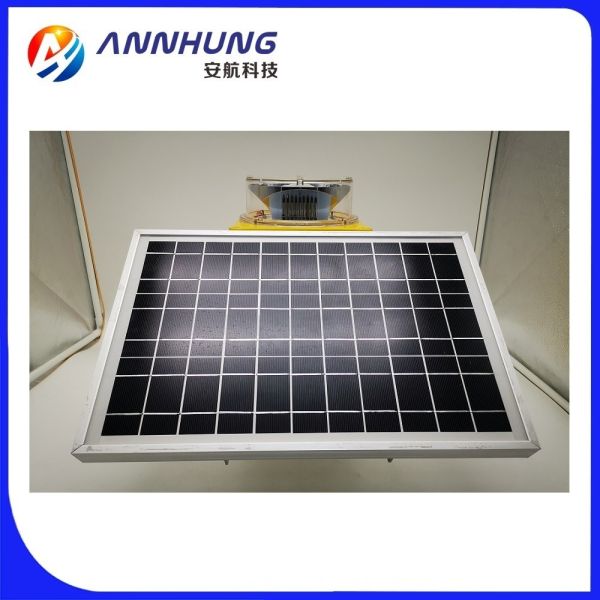

Light picture

AH-MS-A1 Solar Aviation Obstruction Light , LED Warning Lights Type A L865

Function

l AH-MS-A1 solar medium-intensity LED aviation obstruction light is specialized used on the top of the High Chimney, Telecommunication tower, Wind Turbine where there is no cable power supply and those facilities which have high requirements on lightning protection, and most time work with low intensity lights & medium intensity type B light installed on the lower place.

Advantages

1. International advanced solar panel reaching at least 10 years service life.
2. Comprehensive protection in voltage short, over-voltage, floating charge and temperature.
3. Built-in Solar Panel.
4. Strong corrosion resistance, Rain and Snow, Shock and Vibrations protection and UV protection.
5. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
6. Clean, renewable, green and reliable energy source.
7. Dusk-to-dawn operation: Built-in photocell inside light can let light work at night and close during the day automatically.
8. At least 5 days autonomy.
9. Recyclable batteries with the lightest environmental.

10. Small volume especially being suitable for Telecom Tower and Electric installation way.

Compliance

l ICAO Annex 14 Volume 1, Sixth edition, 2013, table 6.3 Medium Intensity Type A Obstruction Light

l FAA L-865

Our Services

ANHANG customer service aims to provide our customers with accessible, efficient and satisfactory technical support and service.

Quality enhancement: reducing the service requirements after sales.
Efficient service: Guaranteeing specialized, reliable, prompt and efficient customer service.
Consulting service: Responding to inquiries about products and services, handling repairs, and resolving complaints about customer service.

AH-MS-A1 Solar Aviation Obstruction Light , LED Warning Lights Type A L865

Datasheet download: download AH-MS-A1 Medium-intensity Type A L865 So...
